How to open a Cross Section view with an Alignment and a Terrain


Product(s):OpenRoads Designer
Version(s):10.08.01.33+
Area: Cross Sections



Question:

I have an alignment and a terrain and I want to view cross sections. How do I do this?

Answer:

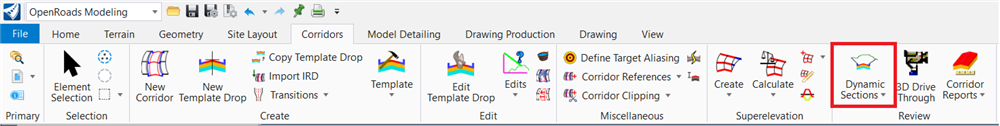

Use the tool OpenRoads Modeling > Corridors > Review > Dynamic Sections > Open Cross Section View.

From there, locate the alignment, set the Left/Right offset and cross section Interval. Then, open a new view window to place the Cross Sections.
