This video demonstrates the ability to display a cell as a terminator for a Note using a Dimension Style.
The cell must be from a Shared Cell or loaded Cell Library.

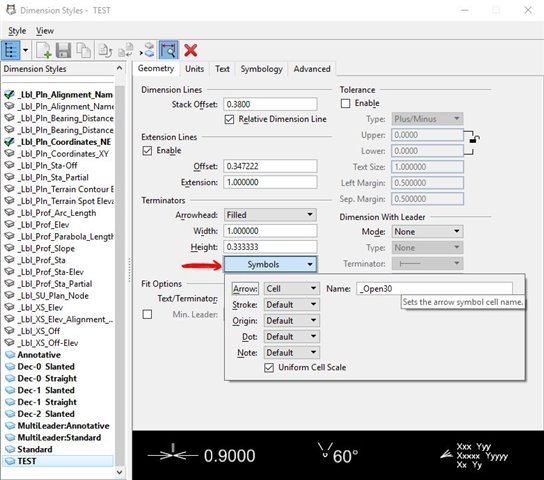

The Dimension style much have the Geometry > Terminators > Symbols > Arrow set to "Cell" and the name of the desired cell must be types in for the 'Name:'.

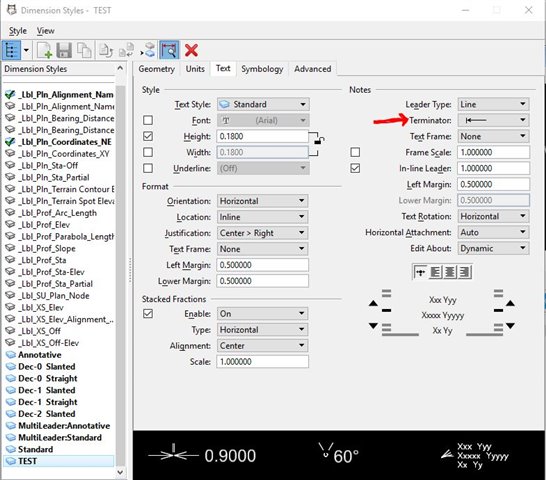

The Dimension style > 'Text' tab > Notes > Terminator must have the arrowhead terminator option selected (second option in the dropdown.
Click the video below to play it. To view in full screen mode, first click the YouTube link at the bottom of the video to launch the video on the YouTube site. Then, click the fullscreen button (rightmost button at bottom of video).
