OPENROADS SIGNCAD INTEGRATION FOR V8I APPLICATIONS
The following SignCAD MDL installation and configuration guidelines are applicable to Bentley Civil V8i versions and OpenRoads SignCAD 10.02.00.11.
CONFIGURATION FILE SETUP
Copy the “V8i SignCAD.cfg” file found in the directory the software was installed into (Example: C:\OpenRoads SignCAD\Ustn) and paste it into the Bentley product appl folder.
Example path: C:\Program Files (x86)\Bentley\PowerGEOPAK V8i (SELECTSeries)\PowerGEOPAK\config\appl
INSTRUCTIONS FOR USING THE SIGNCAD MENU

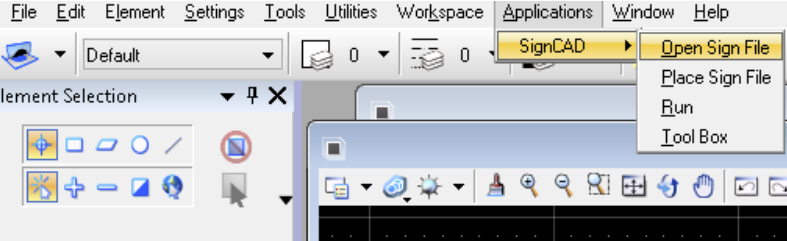

In Bentley V8i Products, the SignCAD Menu is available under Applications > SignCAD.

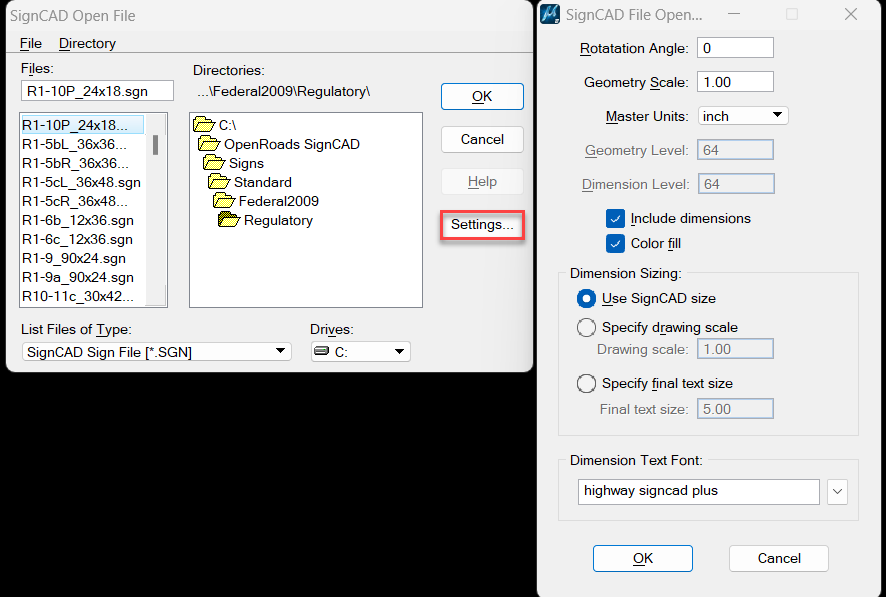

To “Open” or “Place” an OpenRoads SignCAD file in the Bentley V8i product, browse to the file location and select the SGN file. Click on the Settings button to define the parameters. Press OK to both dialogs.

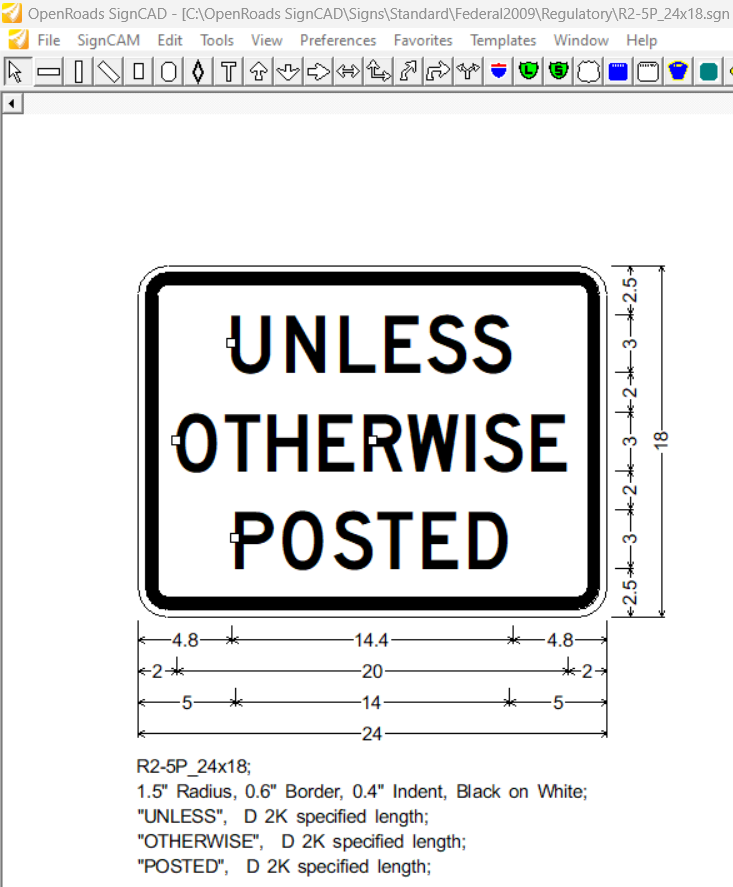

To copy/paste a file from OpenRoads SignCAD into a Bentley V8i application, select the sign in OpenRoads SignCAD (from the OpenRoads SignCAD menu: Tools > Select then window select the sign, Edit> Copy).

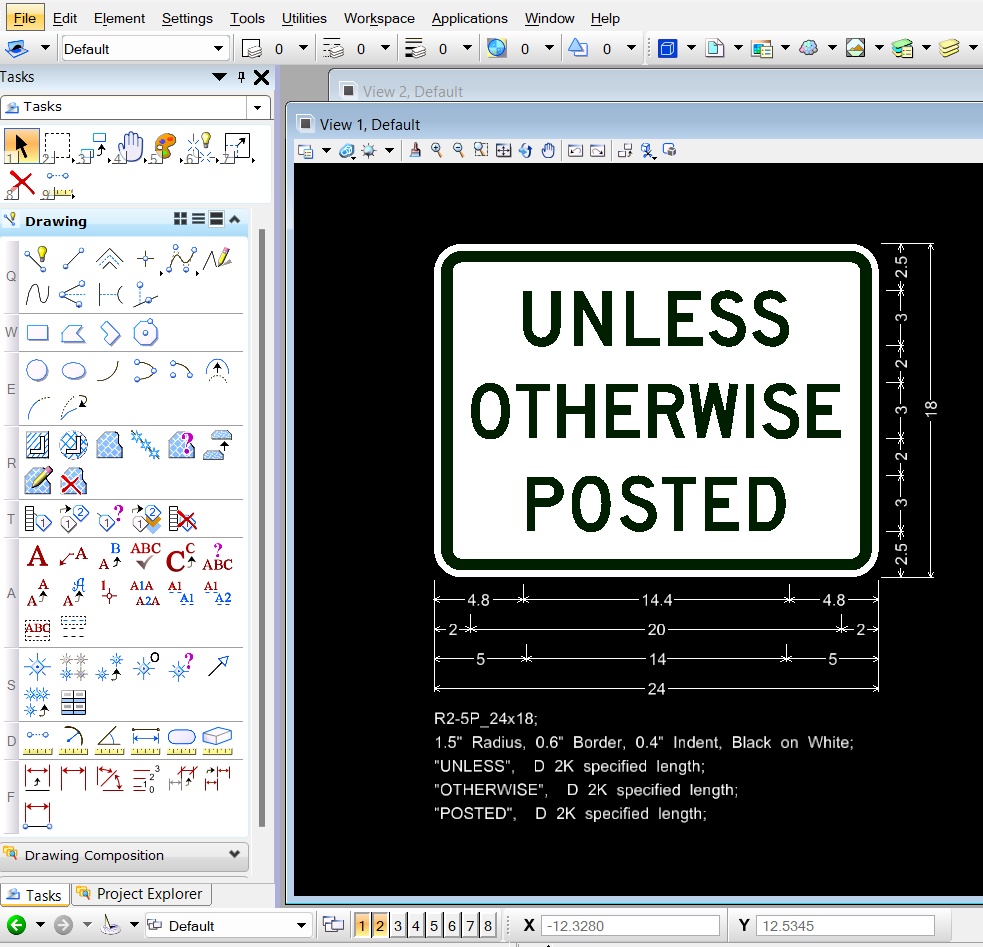

In the V8i application, pick Edit>Paste>SignCAD Sign to Design File.

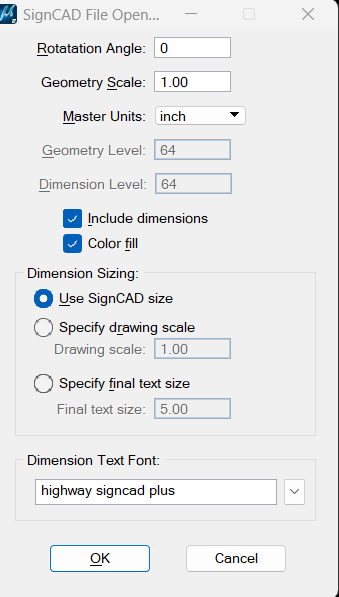

Define the parameters in the SignCAD File Open Settings dialog and press OK. Left click to place the sign.
