Last Mile Utilities MDL Application - Set of utilities for OpenRoads & OpenRail Designer

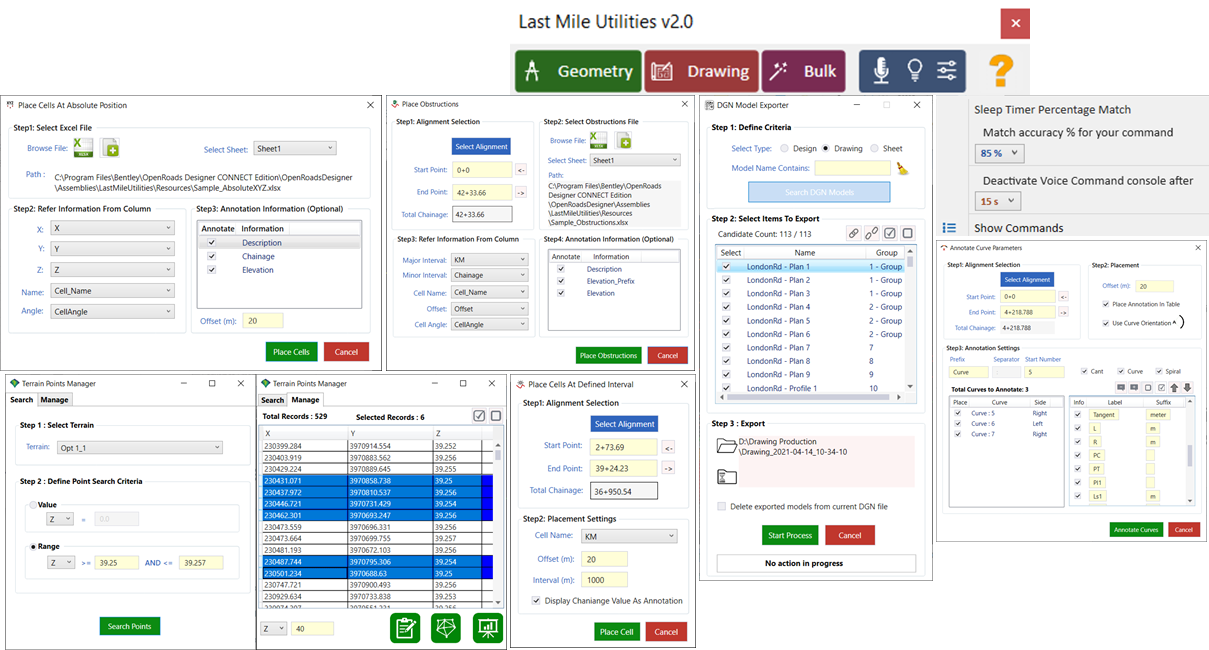

What are LastMileUtilities?

• It is a C# .NET-based MDL Plug-In for OpenRoads & OpenRail Designer, etc.
• It's built using SDKs from OpenRoads & OpenRail
• It features utility tools that can assist users with drawing production, running bulk operations, working with terrain, and using voice commands for quick actions, among other functions.
• Tools are arranged in various menus & in the future, more tools will be added
• It's a plug & play utility & needs no extra libraries or supporting files
• There are multiple videos available on the LastMileUtilities page to explain the functionality of each tool

• Note1: It works on releases 2023, 2024 or 2025
• Note2: It does not work on Microstation as it needs libraries from OpenRoads Designer SDK



LastMileUtilities Download Links

MDL App	Help Document	Version	Release Date	Release Notes
Download	Read Me	2.1	1-Jul-2021	Digital Signature for Lastmile Utilities App to align with Security policies New Tools: Bulk Operation > Level Display Manager for applying the Level Display settings from the Current DGN to all selected DGN Drawings > Side Slope Annotation for annotating slope lines between 2 selected features/lines (2D or 3D) with customizable placement options (tech preview) Improvements Voice Command Feature: Support for OpenSite Designer default Command list Annotate Curve: Option to add a new parameter for Curve:  HPI (Horizontal Point of Intersection) Bug Fixes: The toolbar closes after every DGN switch within the tool Minor bug fixes
Retired	Read Me	2.0	23-Apr-2021	Improved toolbar UI Added Voice Command Console for quick actions New Tools added, like 'Terrain Points Manager' and 'DGN Models Exporter' Improvements inthe  tool 'Annotate Curve Parameters' Bug Fixes & other enhancements, including updated documentation Integrated Video repository for all tools
Retired	Read Me	1.1	12-Feb-2021	Improved way to mention parameters for Curve Annotation
Retired	Read Me	1.0	19-Jan-2021	Place Cells at Absolute Position Place Cells at Defined Interval Place Obstructions Annotate Curve



How to Install LastMileUtilities App & Use?

• Download the utility & save to your local machine
• Unzip & Save the utility folder at the Design Application Path
  • For Ex. C:\Program Files\Bentley\OpenRoads Designer CONNECT Edition\OpenRoadsDesigner\Assemblies\LastMileUtilities
• Please make sure that the folder has . .DLL files and, Resource folder in it
• The resource folder contains sample Cell and Excel files
• Launch the OpenRoads Designer or OpenRail Designer application
• Please add the "LastMileUtilities" folder path in the configuration variable "MS_ADDINPATH" and then try the command "MDL Load" again
• Search "MDL Application" in the Search Ribbon on the right top
• It would open the Application window
• "Browse" to the "LastMileUtilities.dll" file in your folder. Click OK
• Please make sure you get a success message at the Status bar, as shown below
• If you face any problem loading MDL successfully, here are a few action items:
  • Please make sure you are not loading this MDL into the v8i application, as it's not supported
  • Please make sure the path you are putting the MDL in has full access to your logged-in account
  • Please make sure you have the latest version of OpenRoads/OpenRail Designer
  • Most importantly, the entire Source code of the LastMile Utilities is available in the Examples project in the OpenRoads SDK from 2023 release onwards



Tool Key-in

Sr. No.	Tool	Description	Key In command
1	LastMile Open	Opens Last Mile Utilities toolbar	LM Open
2	LastMile Close	Closes Last Mile Utilities toolbar	LM Close
3	LastMile Help	Shows Help for Last Mile utilities toolbar	LM Help
4	Place Obstructions	Place Cells using an alignment using obstuctions data mentioned in the Excel file	LM Place Cells_From_Excel
5	Place Cells at Defined Intervals	Place Cells at a defined interval along with an alignment Location	LM Place Cells_At_Interval
6	Place Cells At Absolute Position	Place Cells at Absolute Location using the data mentioned in the Excel file	LM Place Cells_At_Absolute_Position
7	Annotate Curve Parameters	Annotate Curve Parameters	LM Annotate Curve
8	Terrain Points Manager	Update Terrain Point(X, Y, or Z), Exports Terrain Points report	LM Show Terrain_Points_Manager
9	DGN Models Exporter	Group All CrossSections ina  Single DGN, Split All Sheets Into Individual DGN, or Split DGN Libraries	LM Show DGN_Model_Exporter
10	VoiceCommand Start	Starts Voice Command Console	LM VoiceCommand Start
11	VoiceCommand Stop	Stops Voice Command Console	LM VoiceCommand Stop
12	VoiceCommand List	Shows a list of voice commands and allows the user to add, edit, or delete commands	LM VoiceCommand List
13	Level Display Manager	Apply the Level Display settings from the Current DGN to all selected DGN	LM Show Level_Display_Manager
14	Side Slope Annotation	Annotate slope lines between 2 selected features/lines (2D or 3D) with customizable placement options (tech preview)	LM Annotate Slope





Video Gallery

Version	Video Details	Links
v1.0	Installations Steps	Click Here
v1.0	Tool - Place Cells At Absolute Position	Click Here
v1.0	Tool - Place Cells at Defined Intervals	Click Here
v1.0	Tool - Place Obstructions	Click Here
v2.0	Tool - Terrain Points Manager	Click Here
v2.0	Tool - Annotate Curve Parameters	Click Here
v2.0	Tool - DGN Models Exporter: Group All CrossSections in a Single DGN	Click Here
v2.0	Tool - DGN Models Exporter: Split All Sheets Into Individual DGN	Click Here
v2.0	Tool - DGN Models Exporter: Split DGN Libraries	Click Here
v2.0	Tool - Voice Command Console	Click Here
v2.1	Tool - Side Slope Annotation (Detail Functionalities Guide)	Click Here
v2.1	Tool - Side Slope Annotation (Quick Look at a glance)	Click Here
v2.1	Tool - Level Display Manager	Click Here
