| Product(s): | OpenRoads/ OpenRail/ OpenSite Designer Connect Edition |
| Version(s): | 10.11+ |
| Area: | Drawing Production |
For annotation of Station Range following two Text Favorite fields are added in the OpenRoads Designer 2022 Release 1 Version 10.11.00.115 and later versions.
"Sheet Minimum Station" and : Sheet Maximum Station"
These filed are available for Plan, Profile and Cross Section Field Sub Types.

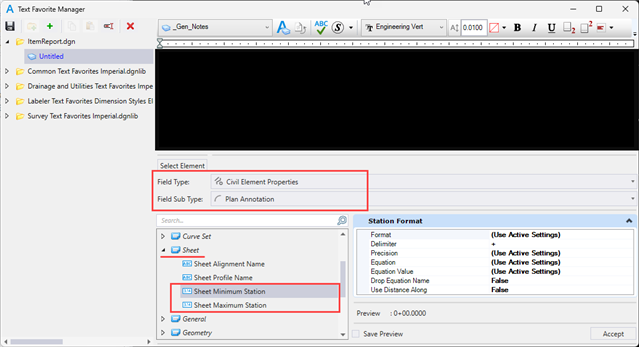

To Create the Text Favorite for Station Range in the Text Favorite Manger, select following fields
Field Type: Civil Element Properties
Field Sub Type : Annotation > CrossSection Annotation / Plan Annotation / Profile Annotation
Expand Sheet > Select "Sheet Minimum Station"
Following video demonstrates how to create Text Favorites to annotate Station Range on Sheet Models
Click the video below to play it. To view in fullscreen mode, first click the YouTube link at the bottom of the video to launch the video on the YouTube site. Then, click the fullscreen button (rightmost button at bottom of video).
