Products Involved:

• iTwin Analytical Synchronizer (v12.01.01.01)
• ISM Revit Plugin                     (v11.03.00.04)
• STAAD.Pro V22 Update 9      (v22.09.00.115)



Part 1 - REVIT to STAAD

Below screenshots and video shows the steps to get a Tank Structure (originally modelled in REVIT ) into STAAD for Analysis and Design.

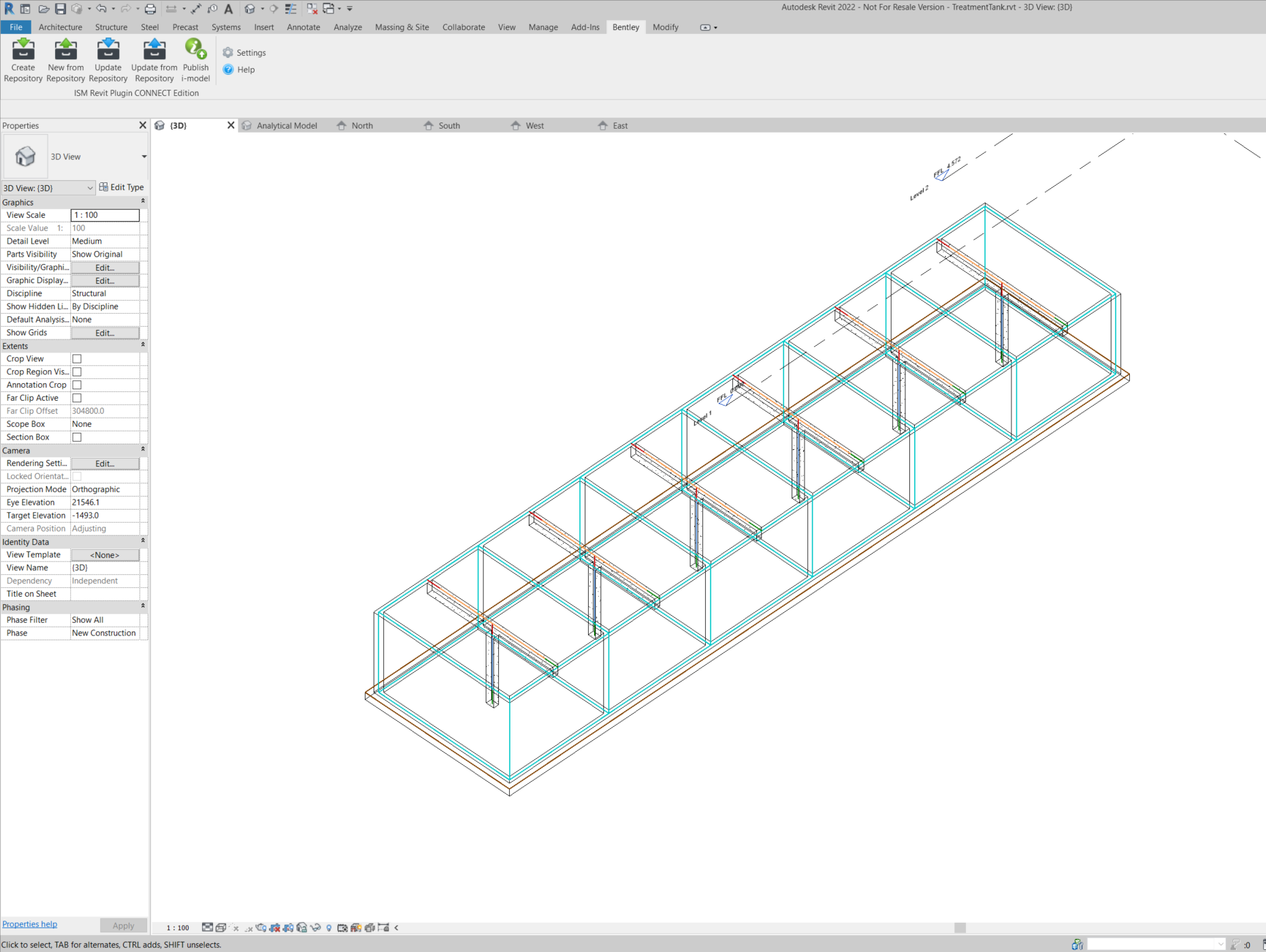

REVIT Tank Structure:



STAAD.Pro Physical Modeller:

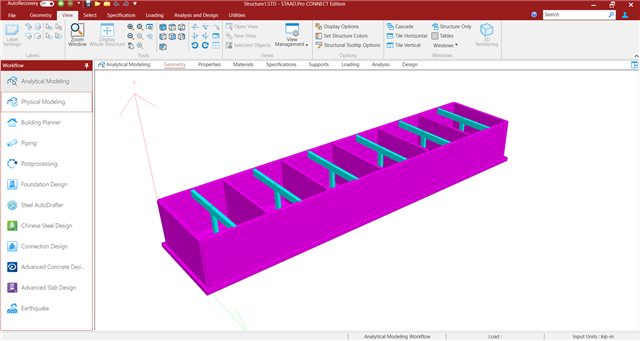

STAAD.Pro Analytical Modeller:



Watch this space for subsequent follow up videos showcasing change management between REVIT and STAAD for above workflow.
