Background

This article will explain how you can change the weld size as per your requirement. By default the weld size for metric project is 10.

Steps to Accomplish

Method 1: Modifying the Weld Size in the AutoPLANT Drawing
Note: The changes will be drawing specific only.

1. In AutoPLANT Model type in the command line (at_pipingsystem_displayvariables).

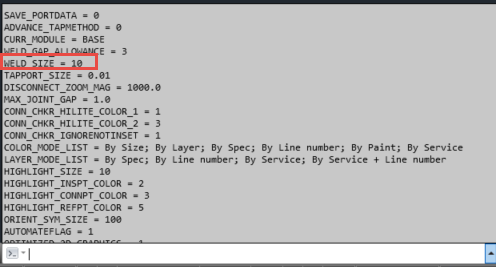

2. In the command line type (at_pipingsystem_setvariable "WELDSIZE" "40").

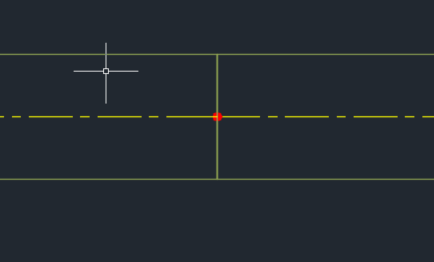

3. Notice, now that the weld size has been changed.




Method 2: Modifying weld size setting to make it project specific

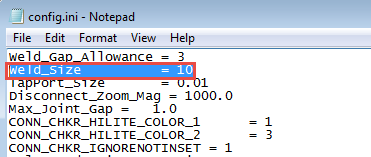

1. Open Config.ini located at location: %Project_name\Config\Config.ini.
2. Change the variable Weld_Size to the required value.



Method 3: After using Method 1 & 2 any new components placed will have new weld size.
Note - However, to change the old welds size below steps should be used.

1. Download attached Weld.zip file and copy Weld.ebs file to %Project_name\Config\modules\base\Piping\Draw
2. Reopen AutoPLANT drawing and Redraw components as below.



Method 4: Modifying Weld Size (.ebs ) file:

1. Open from C drive: Program files (x86): Bentley: PlantV8i: Modules: Base: Piping: draw
2. Choose file (WELD.ebs)
3. Open with NotePad ++
4. Add the following Code to the file (at line 250 make room to add in the following code) and save the file


      'status = at_Preference_getString (useWeld, "Use_Weld_Size")
      'If ((status = AT_SUCCESS) And (strComp (useWeld, "1", 1) = 0)) Then
         status  =  at_Preference_getString (cWeldSize, "Weld_Size")
         If ((status = AT_SUCCESS)) Then
            If (CDbl (Val(cWeldSize)) > 0.0) Then
               weldSize = CDbl (Val(cWeldSize))
               GoTo skipdef
            End If
         End If
      'End If

   'JRO/TSG 19 June 2015

     Weldsize=15
    '//  Weldsize=12
     Dim UNITAT As String
     Dim unita As Double

     status = at_Preference_getString(UNITAT, "UNITS_TYPE")
     unita = CDbl (Val(UNITAT))
     If unita=1 Then
       weldsize=(weldsize/25.4)
     End If

   'END JRO 19 June 2015


5. Change the weld size accordingly ( where the code says 24 / change to desired size )
6. Open Project from Bentley Document Manager
7. begin to draw pipe
8. if there is pipe existing that needs redraw

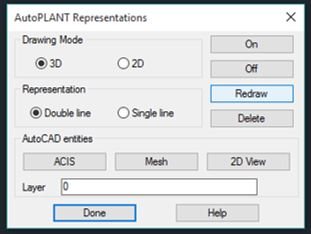

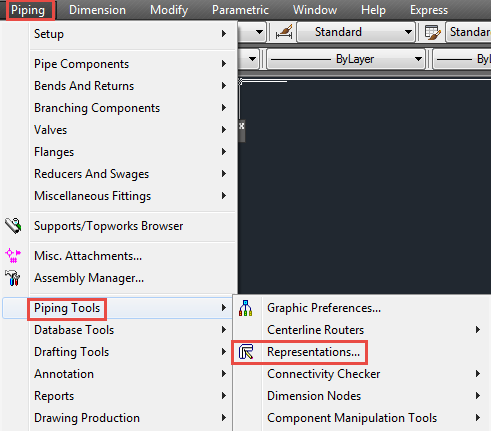

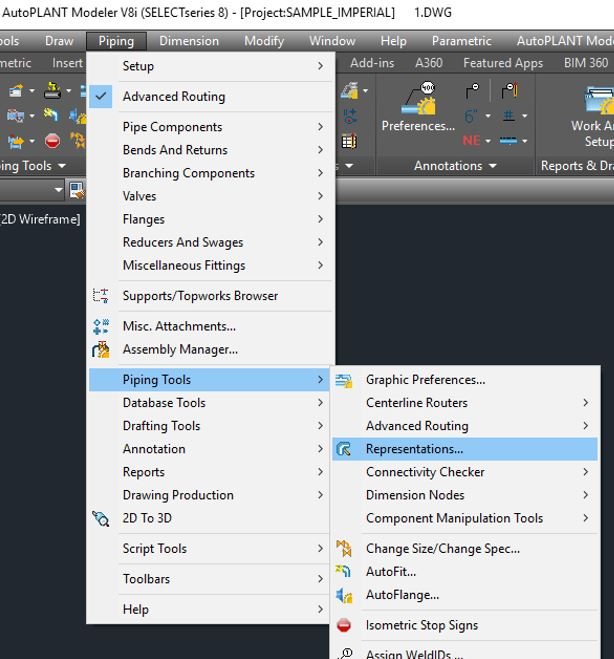

9. From the Piping Tab: Piping Tools: Representation: Redraw
