How to Change Text Font, Size, Color and Location in BOM Using Text Nodes in CONNECT Edition


Applies To
Product(s):OpenPlant Isometrics Manager CONNECT Edition
Version(s):10.10.01.XXX
Environment:Windows 10 (64-bit)
Area:Settings/Attributes
Subarea:-
Original Author:Evander Cabalagan, Bentley Global Technical Support

Background

If the user wants to change Bill of Material’s text font, size, color, Text Node location, and attributes.

Steps To Accomplish

  1. Launch OpenPlant Isometrics Manager and open a seed file.
  2. Click on View Attributes and turn on Text Nodes.
  3. Double click on selected Text Node.
  4. Select Open Text Style Dialogue.

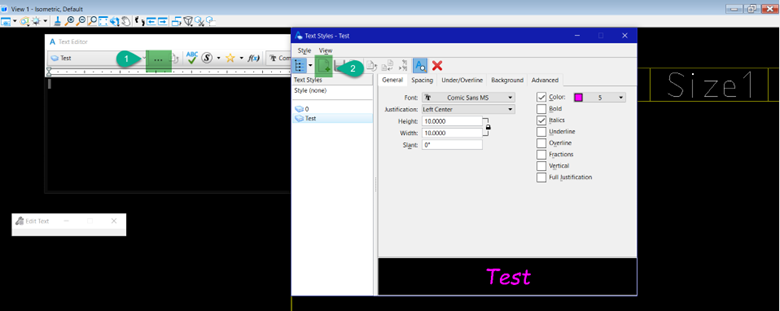

  5. Create new Text Style and put a name (Example: Test).
  6. Input desired font style, height, width, color, and etc.

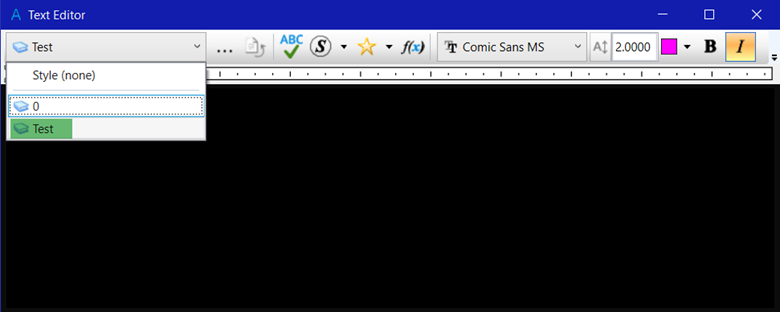

  7. In Text Editor, select Test.
  8. Save and close the seed file. Generate Isometrics again to verify the result.

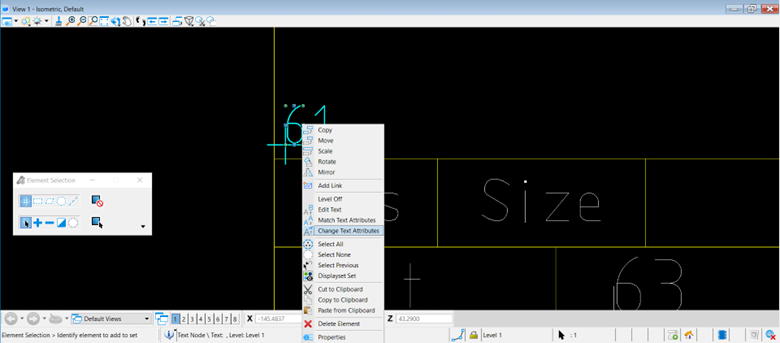

  9. To change the location of Text Node, right on it and select Change Text Attributes.

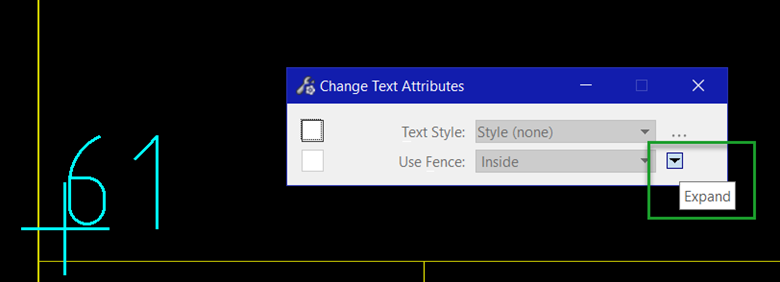

  10. Click the drop-down to expand the options.

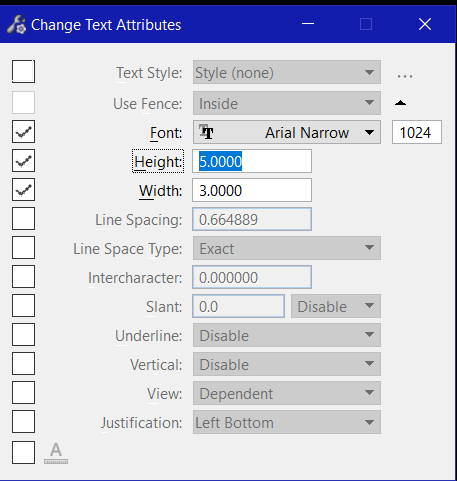

  11. Check the box to enable the property and add values.

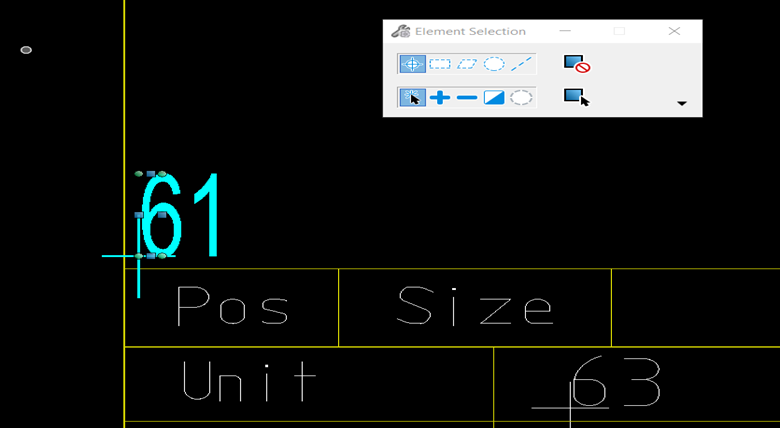

  12. Click on the empty space of seed file to take effect the changes.
