Welcome to the world of MicroStation Python! In our previous wiki, we explored how to create an Item Type definition "RoomDetails". Now, in this wiki, we'll take the next step and learn how to attach or link the "RoomDetails" Item Type to an element within MicroStation.

Attach Item Type

To get started, refer to the Python Manager wiki for instructions on creating and loading a new Python project. Name your project "ItemType_AttachItem.py" and save it in a convenient location. Once created, open the project in your preferred code editor to begin writing your Python script.

The script scans the DGN file for Shape elements and attaches the 'RoomDetails' Item Type to each identified element.

Here is the complete script.

from MSPyBentley import *
from MSPyBentleyGeom import *
from MSPyECObjects import *
from MSPyDgnPlatform import *
from MSPyDgnView import *
from MSPyMstnPlatform import *


# Globals
g_itemtype_lib_name = "Project_001"
g_itemtype_name = "RoomDetails"


# Scan Shape Elements Function
def ScanShapeElements():
    global dgn_model

    # Check Project_001 Item Type Library exists
    g_itemTypeLib = ItemTypeLibrary.FindByName(g_itemtype_lib_name, dgn_file)
    if (None == g_itemTypeLib):
        print (f"Item Type Library [{g_itemtype_lib_name}] not found...")
        return

    # Check if RoomDetails Item Type exists
    roomdetItemType = g_itemTypeLib.GetItemTypeByName(g_itemtype_name)
    if(None == roomdetItemType):
        print (f"Item Type [{g_itemtype_name}] not found...")
        return

    # Attach Item Type RoomDetails to Shape elements
    graphicalElements = dgn_model.GetGraphicElements()

    for elmRef in graphicalElements:
        eeh = EditElementHandle(elmRef, dgn_model)
        msElement = eeh.GetElement()
        isGraphics = msElement.ehdr.isGraphics
        isVisible = not(msElement.hdr.dhdr.props.b.invisible)
        eleType = eeh.GetElementType()

        # Change color, linestyle, weight to the line element
        if (isGraphics and isVisible and eleType == 6):
            itemHost = CustomItemHost(eeh, False)
            itemHost.GetCustomItem
            dgnecinstance_existing = itemHost.GetCustomItem(g_itemtype_lib_name, g_itemtype_name)
            if (None == dgnecinstance_existing):
                dgnecinstance = itemHost.ApplyCustomItem(roomdetItemType)
                if None != dgnecinstance:
                    print (f'Item type attached to element Id:[{eeh.GetElementId()}]...\n')
            else:
                print (f'Element Id:[{eeh.GetElementId()}] Type:[{eeh.GetElementType()}]
                         has item type attached...\n')

    return


# Main function
def main():
    global ACTIVEMODEL
    global dgn_model
    global dgn_file
    global uor

    # Globals
    ACTIVEMODEL = ISessionMgr.ActiveDgnModelRef
    dgn_model = ACTIVEMODEL.GetDgnModel()
    dgn_file = dgn_model.GetDgnFile()
    model_info = dgn_model.GetModelInfo()
    uor = model_info.GetUorPerStorage()

    ScanShapeElements()


# main
if __name__ == "__main__":
    print("***** Item Type Attach *****")
    main()

Run/Execute project

Download the attached DGN file “Building_Attach.dgn”. Load the project “ItemType_AttachItem.py” from the Python Manager dialog and Run/Execute the python script.

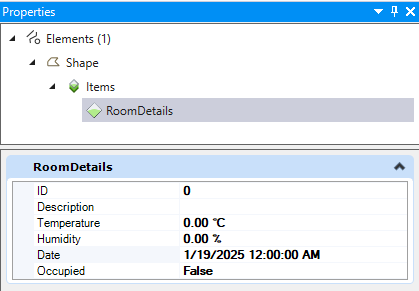

Item Type “RoomDetails” is attached to all Shape elements as illustrated below.

Happy coding!
