Welcome to the world of MicroStation Python! This wiki provides a Python code snippet that demonstrates how to create and place a Note element.

Create and place Note element in MicroStation with Python

Let us dive into, creating and placing a Note element. Refer to the Python Manager wiki to create and load a python project. Name your project as "NoteElement.py" and save it to your preferred directory. Open the project in the editor for writing your Python script.

Prerequisites:

Create a Text Style named "NoteStyle".
Create a Dimension Style named "NoteStyle".

Here is the complete script.

from MSPyBentley import *
from MSPyBentleyGeom import *
from MSPyECObjects import *
from MSPyDgnPlatform import *
from MSPyDgnView import *
from MSPyMstnPlatform import *


noteStyleName = "NoteStyle"


# GetText function
def GetText(text, File, model):
    textStyle = DgnTextStyle.GetByName(noteStyleName, File)
    if (None == textStyle):
        print (f"Text Style: <{noteStyleName}> not found")
        return None

    textBlock = TextBlock(textStyle, model)
    textBlock.AppendText(text)
    return textBlock


# CreateNote function
def CreateNote(leader, noteElem, File, model):
    text = GetText("Note Test\nLine 2\nLine 3", File, model)
    if (None == text):
        print (f"Text Block creation failed...")
        return None

    dimStyle = DimensionStyle.GetByName(noteStyleName, File)
    if (None == dimStyle):
        print (f"Dimension Style: <{noteStyleName}> not found")
        return None

    points= DPoint3dArray()
    points.append(DPoint3d(10000, 0, 0))
    points.append(DPoint3d(150000, 50000, 0))
    return NoteCellHeaderHandler.CreateNote(noteElem, leader, text, dimStyle,
                                            model.Is3d(), model, points)



# CreateNoteElement function
def CreateNoteElement():
    dgn_model = ISessionMgr.ActiveDgnModel
    dgn_file = ISessionMgr.GetActiveDgnFile()
    noteElem = EditElementHandle()
    leader = EditElementHandle()
    status = CreateNote(leader, noteElem, dgn_file, dgn_model)

    if (BentleyStatus.eSUCCESS != status):
        print("Note element creation failed...")
        return

    if (BentleyStatus.eSUCCESS != NoteCellHeaderHandler.AddToModel(noteElem, leader, dgn_model)):
        print("Note element not added to model...")
        return

    dgn_file.ProcessChanges(DgnSaveReason.eFileClose)



# main function
def main():
    CreateNoteElement()


# main
if __name__ == "__main__":
    print ("***** Place Note *****")
    main()

Run/Execute project

Load the project "NoteElement.py" from the Python Manager dialog and Run/Execute the python script.

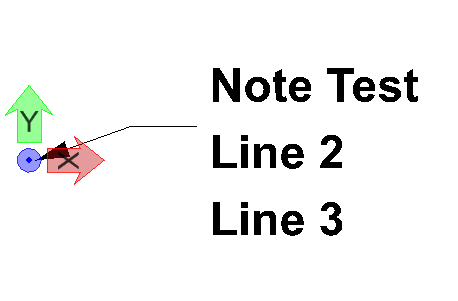

Note element is created and placed into the DGN file.

This script offers a simple and efficient method for creating a Note element. Customize the script to suit your requirements and integrate into your workflows.

Happy coding!
