Question

System curve for closed loop with downstream demand

BCL
by
Bentley Communities Legacy Member
Expert
Created (Edited ) in OpenFlows | Water Infrastructure Forum

communities.bentley.com/.../model-1.wtgpkg.zip

Hello,

I am modeling for water supply network closed loop system with downstream demand.

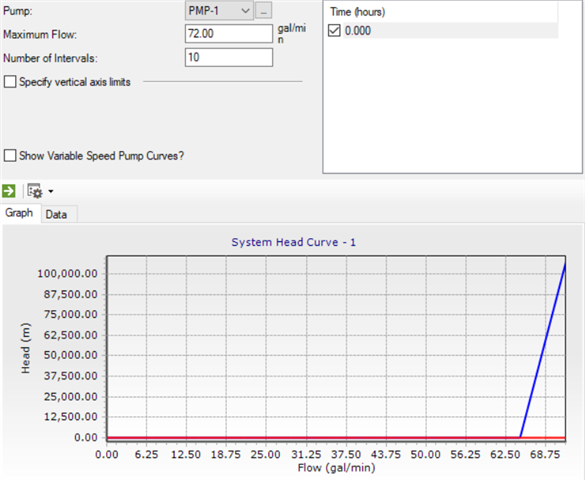

when i compute for system curve the model is showing excessive system head.

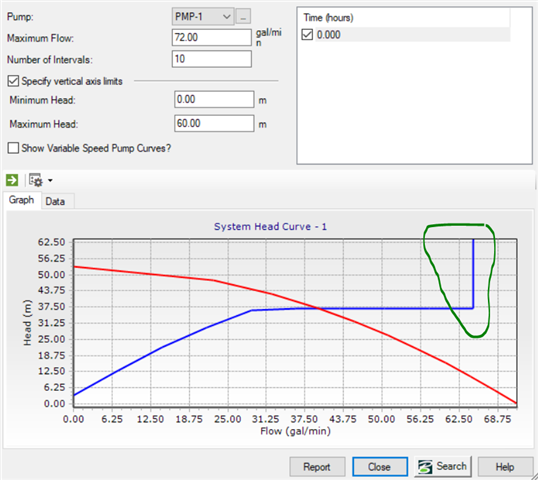

and when i specify the vertical axis limit it is giving some abrupt changes in system head.

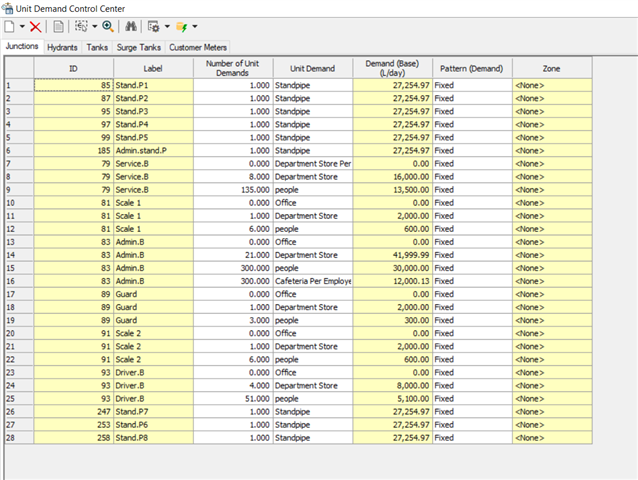

below is the demand allocation details


please check the attachment for complete model
Topics: Watercad #watergems system curve
