Why are yellow squares appearing in my raster images?

by
Brent Carney
Explorer

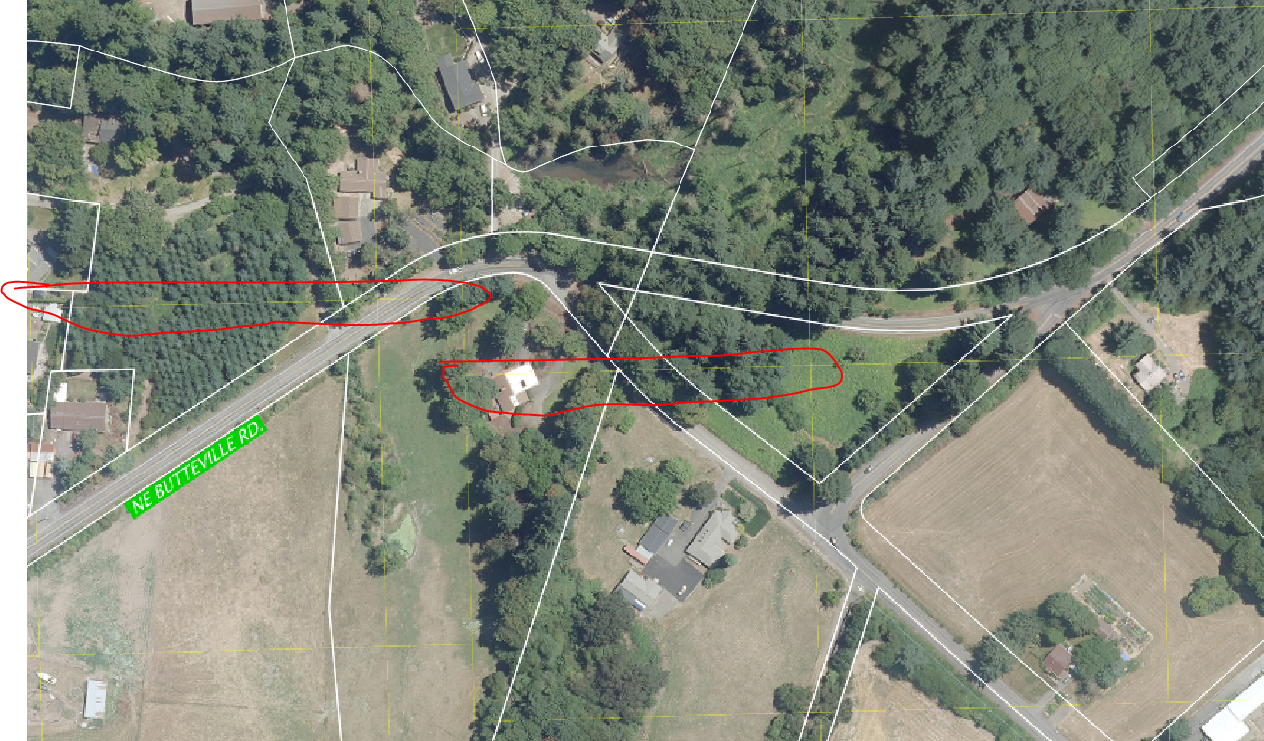

I have an exhibit with a raster aerial background, but when I print to PDF, very thin yellow squares are appearing over the rasters, and I can't figure out how to make them go away. When I open the PDF in Bluebeam or Adobe, the image display slowly appears by small squares, but each square surrounded by these yellow lines. The six raster images are attached to their own DGN, which is referenced into a container file, which is referenced into the exhibit. In the image I've included, you can see the yellow squares, and the jog in their alignment between one raster to the left and another to the right. Please let me know if I can provide any more information, and thanks ahead of time for any input!

I'm using OpenRoads Designer 2023 Version 23.00.00.129.
