Piping Isometric Plant north v/s Actual north

by
Bentley Communities Legacy Member
Expert
Created (Edited ) in OpenPlant | AutoPLANT Forum

HI,

I'm working one of the project in OPM.

My models are in actual co-ordinates and angle. Plant is spread all in 3 different direction

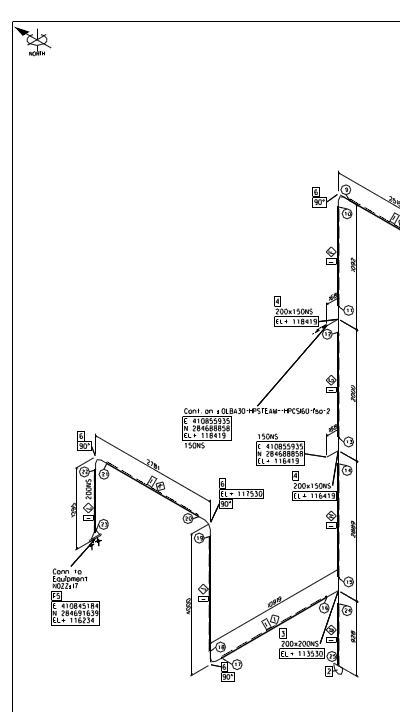

When I extract Isometrics for Piping it comes with reference to actual north. All piping looks like as image attached 1.jpg

imagePost

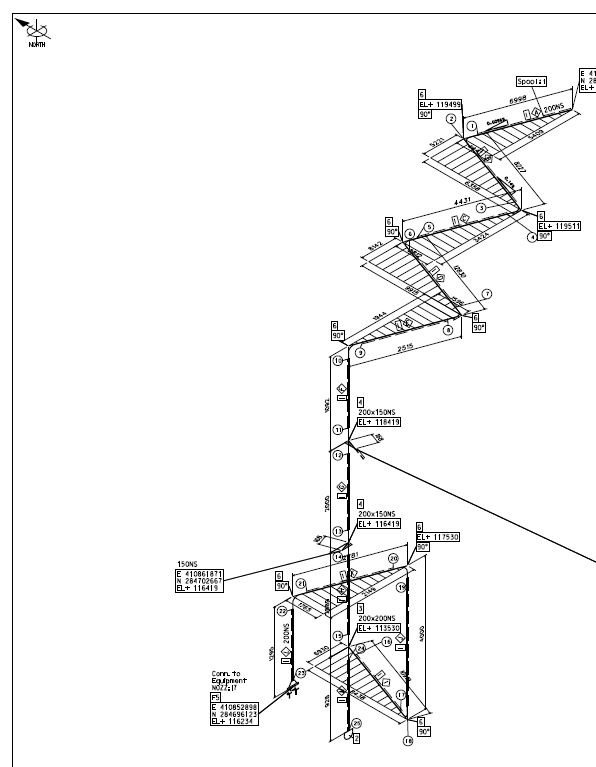

but in real world we need isometric like attached below


Any one knows how to resolve this issue?

OR set plant north as I need and route pipework as in X and Y direction.
